USBC HDMI Autoswitching 18Gbs Wall Plate Extender

• Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
• HDMI input supports 18Gbps video bandwidth;
• USB-C input supports 5.4Gbps video bandwidth
• Video resolution up to 4K2K@50/60Hz 4:4:4
• CAT6 output can extend video transmission distance up to 50m@4K@24 or 35m@4K@60 444 via a single CAT5e/6 cable
• Supports 3D, HDR10 and Dolby Vision
• Supports HDMI and USB-C input
• With USB-C charging port
• US one-gang enclosure for Decora-style wall plate openings
• Input signal selection supports automatic mode and manual mode
• Supports POC function (only from Receiver to Transmitter)

SKU: ND-WP-H-18G70-KT

Description

Description

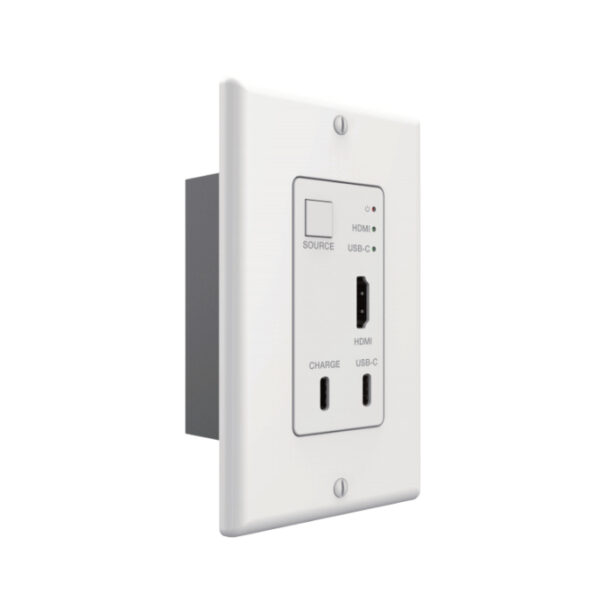

The wall plate is a 2×1 switcher and CAT transmitter with HDMI and
USB-C inputs. It features a US one-gang enclosure for Decora-style
wall plate with interchangeable black and white wall plates
and faceplates. Support videos resolution up to 4K2K@50/60Hz 4:4:4.
CAT6 output can extend video transmission distance up to 164ft / 50m.
The product is remotely powered by the receiver or other CAT-equipped
devices via POC.

ND-WP-HU-70-KT Manual

Package Contents
• 1 × 18Gbps HDMI/USB-C Extender (Transmitter)
• 1 × 18Gbps HDMI Extender (Receiver)
• 4 × Mounting Ear
• 1 × 24V/1A Desktop Power Supply
• 1 × User Manual
