Description
Key Features

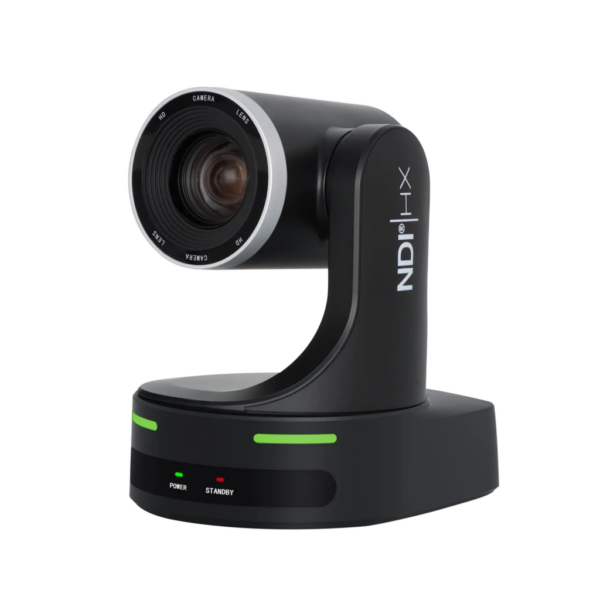

Network Device Interface (NDI): With the latest protocols, this camera integrates seamlessly. It transmits video and can be controlled using NDI-enabled devices.
Modern Design: The camera boasts a sleek, single-arm design, ensuring professionalism in any application. It offers versatile mounting options, including ceiling, desktop, wall, or tripod.
1080P High-Definition Resolution: Equipped with a 1/2.8” Progressive CMOS sensor and 2.07 Megapixels, this camera provides a maximum resolution of 1920×1080 at a frame rate of up to 60fps. Its razor-sharp optics maintain consistent subject focus.
Multiple Output Connections: It supports simultaneous output through USB3.0, HDMI, SDI, and Streaming .h264/.h265 video.
Advanced CMOS Sensor: This camera features a brand-new CMOS image sensor, offering an ultra-high signal-to-noise ratio. This allows the camera to deliver exceptional picture quality, even under challenging lighting conditions.

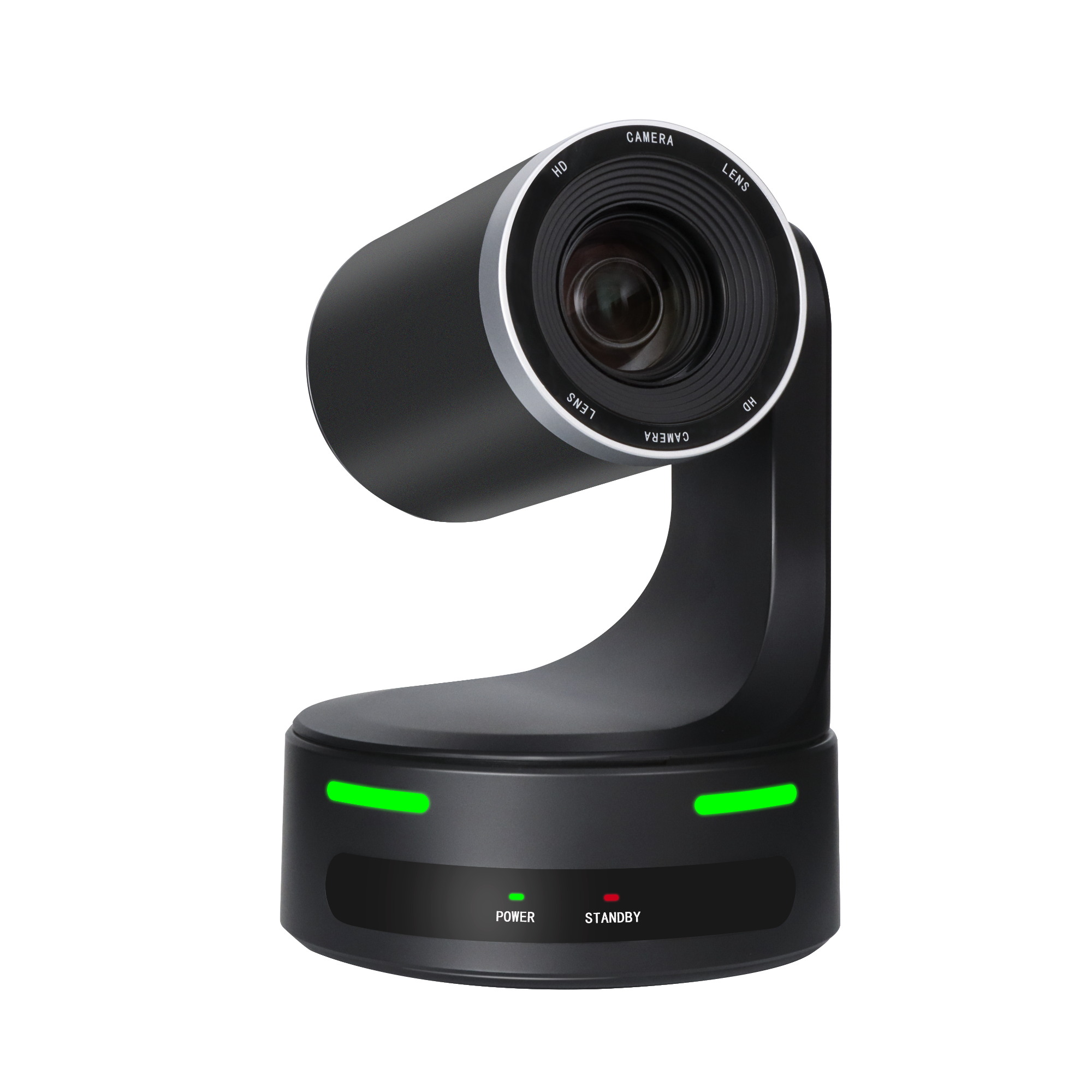

Integrated Tally Light: The body of the camera incorporates twin LED Tally lights, making it easy to identify which camera is active during a recording or broadcast.
Wide Range of Applications: It is suitable for various uses including tele-education, lecture capture, webcasting, video conferencing, tele-training, tele-medicine, and emergency command systems.
| Specifications | |
| Resolution | 1080p60/50, 1080p59.94/29.97, 1080p30/25, 1080i60/50, 1080i59.94, 720p60/50 |
| Image Sensor | SONY 1/2.8” Progressive CMOS |
| Scan Mode | Line by line |
| Lens | 20X optical zoom, f=3.9mm(w)~46.8mm(f) |
| Focus System | Auto/Manual |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter Speed | 1/25s~1/10000s |
| White Balance | Auto/Manual/One-click/Indoor/Outdoor |
Backlight Compensation | Support |
Digital Noise Reduction | 2D&3D Digital noise reduction |
| S/N Ratio | ≥55dB |
| Horizontal View Angle | 72.5°(W)～6.5°(T) |
| Vertical View Angle | 40.8°~3.7° |
| Horizontal Rotation Range | 355° |
| Vertical Rotation Range | -30°~+90° |
| Horizontal Rotation Speed Range | 1°~90°/s |
| Vertical Rotation Speed Range | 1°~90°/s |
| Electronic Flip | Support |
| Image Freeze | Support |
| POE Power Supply | 802.3af(optional) |
| Preset Position | 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC |
| Accuracy of Preset Position | 0.1°±10% |
| USB Features | |
| Protocol | UVC1.1, UAC1.0 |
| Operating System | Window7 and above, MacOS, Linux, Android |
| UVC Video Coding Format | YUY2, MJPEG, H.264, H.265 |
| UVC Video Resolution | 320×240, 640×480, 720×576, 800×600, 1280×720, 1920×1080, 3840×2160 and so on |
| UVC Video Frame Rate | Max.60 |
| Network Characteristics | |
| Code Stream | Main code stream*1，Auxiliary code stream*1 |
| Coding Format | H.264, H.265, MJPEG |
| Streaming Media Protocol | RTMP, RTSP, RTMPS, ONVIF, SRT, NDI|HX(optional) |
| Main Code Stream Resolution | 576P30, 720P25, 720P30, 720P50, 702P60, 1080P25, 1080P30, 1080P50, 1080P60 |
| Auxiliary Code Stream Resolution | 576P30, 720P25, 720P30 |

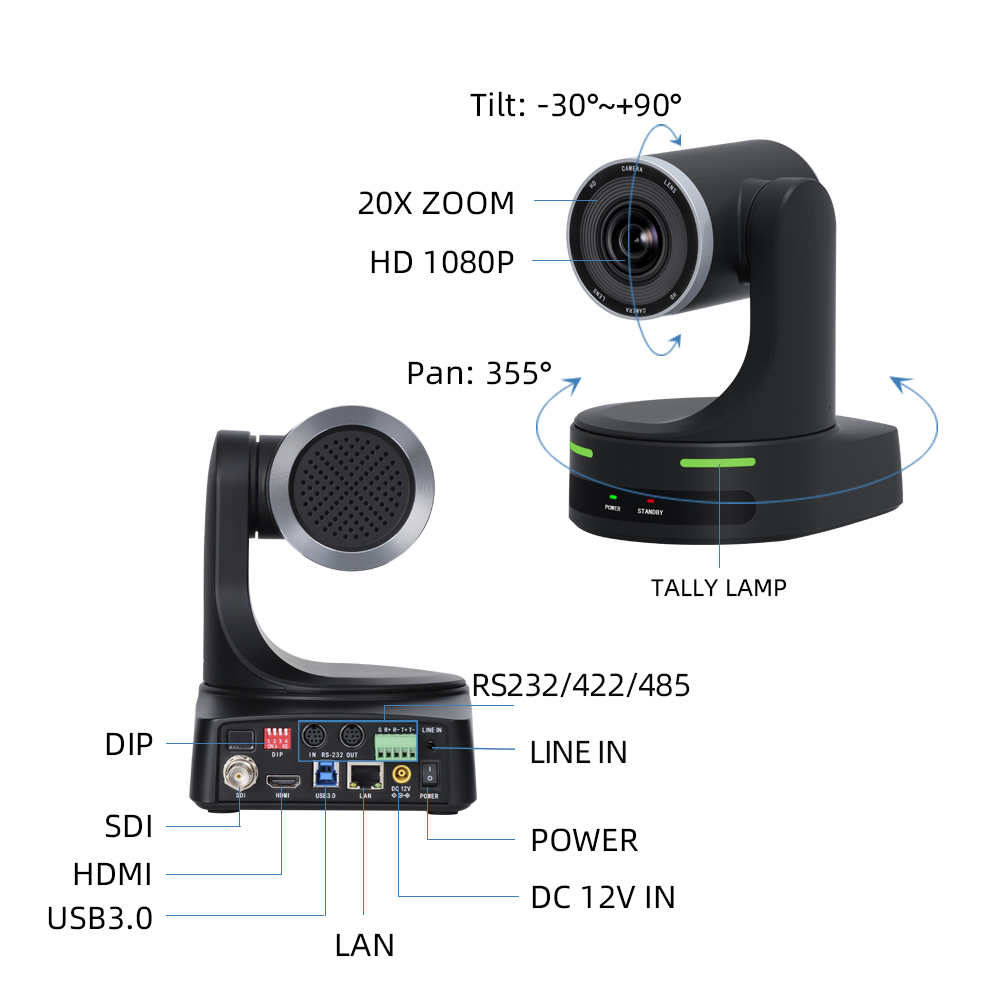

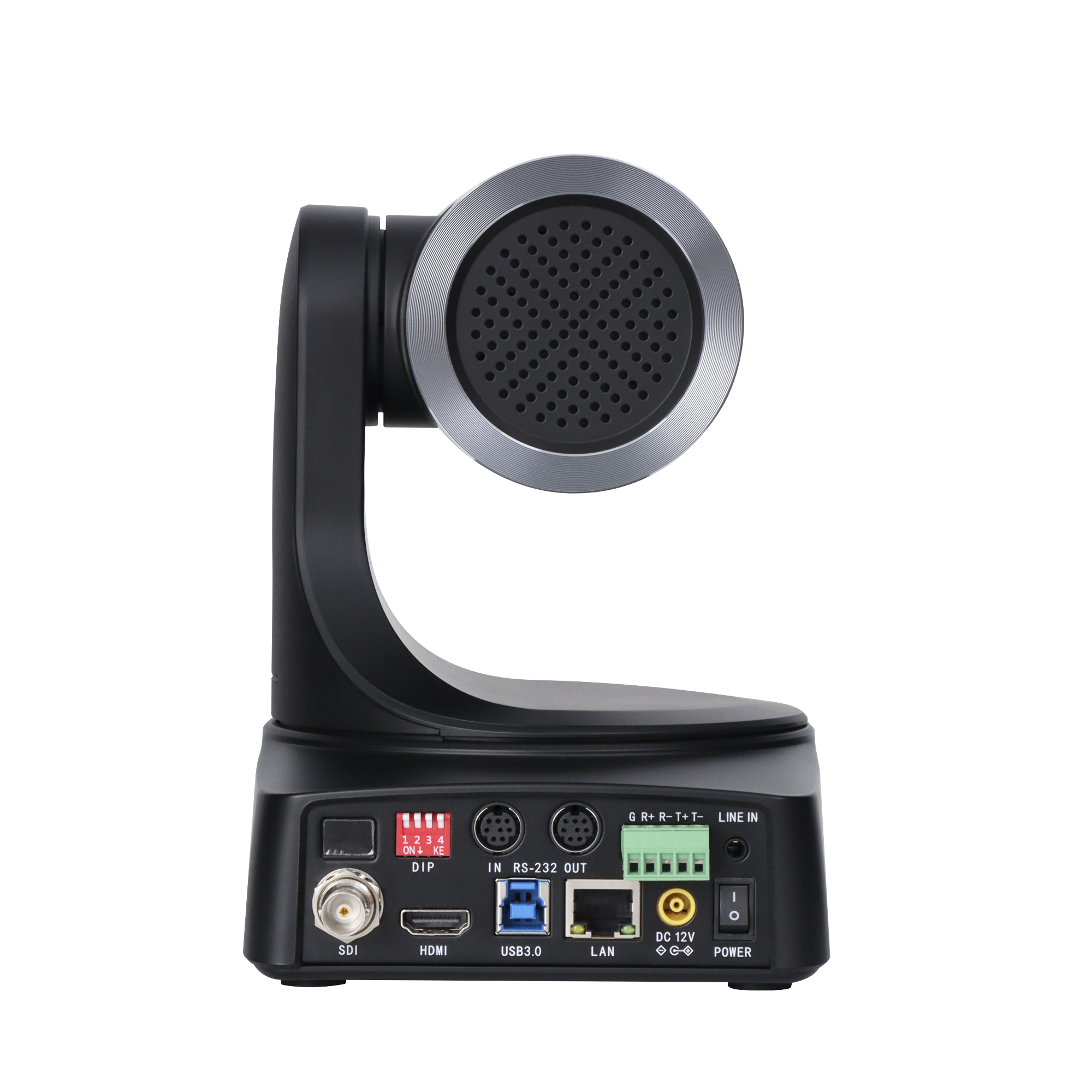

| Interface | |
| Video Output HD | 1 Line, HDMI: Version1.4 1 Line, 3G-SDI: SMPTE-274M(Level A), SMPTE-296M |
| USB Interface | 1 Line, USB 3.0, Type-B Socket |
| Network Interface | 1 Line, RJ45: 10M/100M Ethernet port |
| Other Input | 1 Line, Line In, 3.5mm AUDIO-IN |
| Control Mode | 1 Line, RS232 IN: 8 Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol |
| 1 Line, RS232 OUT: 8 Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol | |
| 1 Line, RS422/485 IN/OUT: Nine-core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol | |
| Power Interface | DC 12V IEC60130-10(JEITA Standard RC-5320A) TYPE4 |
| General Specifications | |
| Input Voltage | DC 12V |
| Input Current | Max.1.0A |
| Power Consumption | Max.12W(DC 12V) |
| Operating Temperature | 0~40℃ |
| Storage Temperature | -10-60℃ |
| Camera Dimensions | (L)161×(W)133×(H)181mm |
| Color | Black |
| Weight | 1200g |
| Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI Cable, USB3.0 Cable, Ceiling bracket (Wall bracket optional) |
Package Contents
- 1 x PTZ Conference Camera
- 1 x 12V/1A Power adapter
- 1 x User Manual
- 1 x IR Remote Control
- RS232 Cable
- USB3 Cable
- HDMI Cable
- Ceiling Bracket
