Description

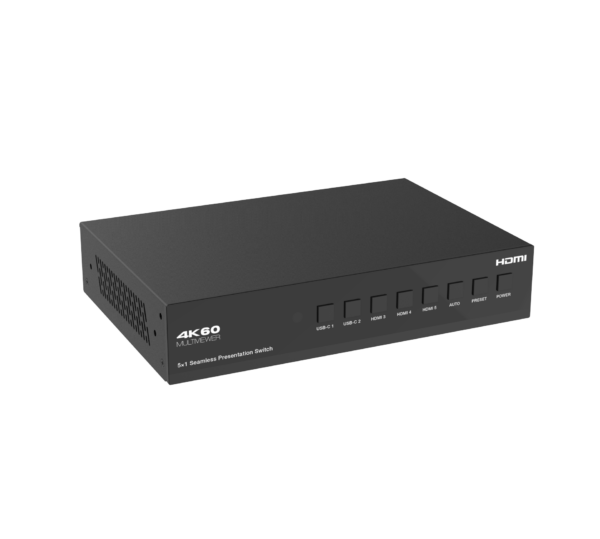

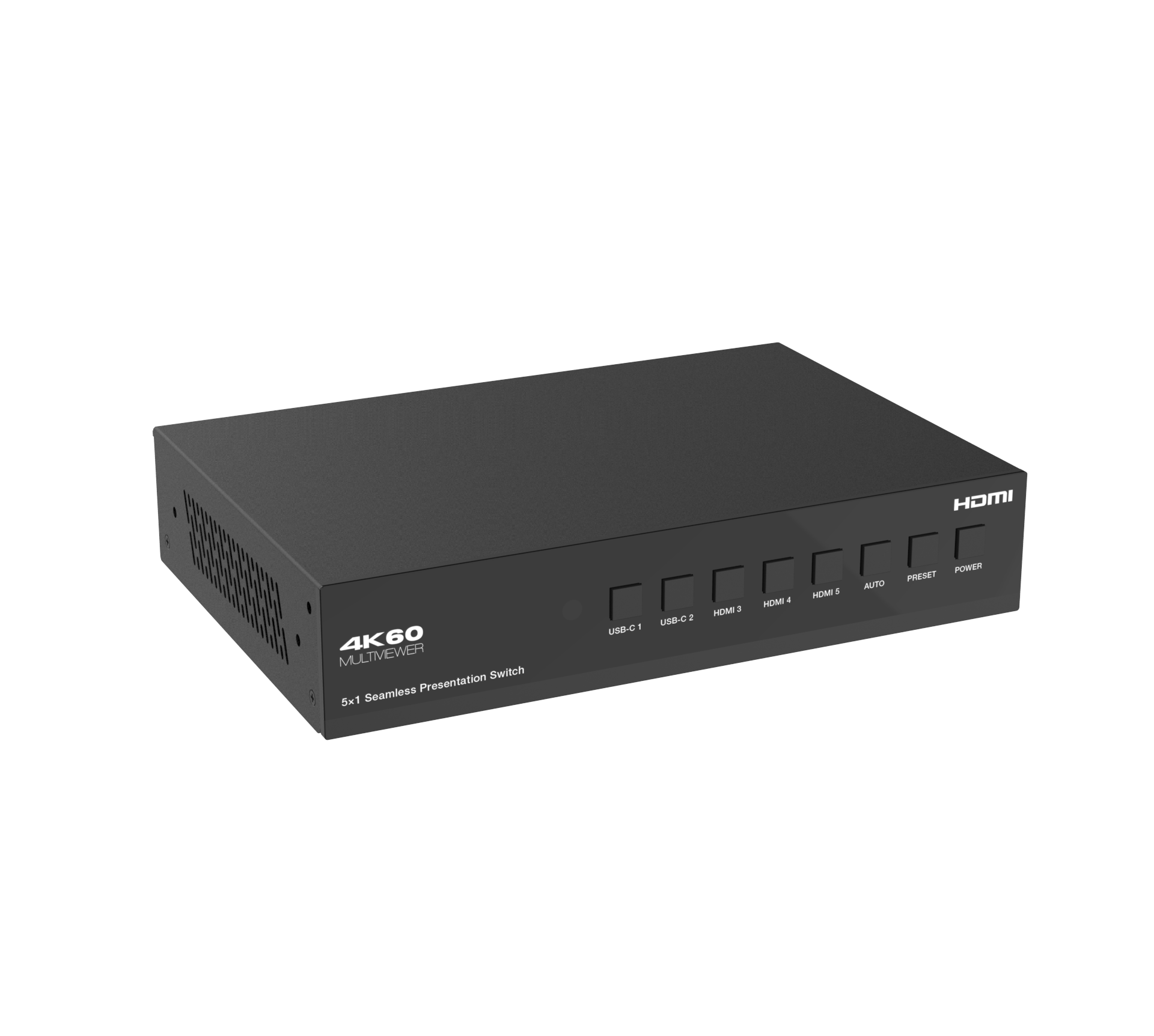

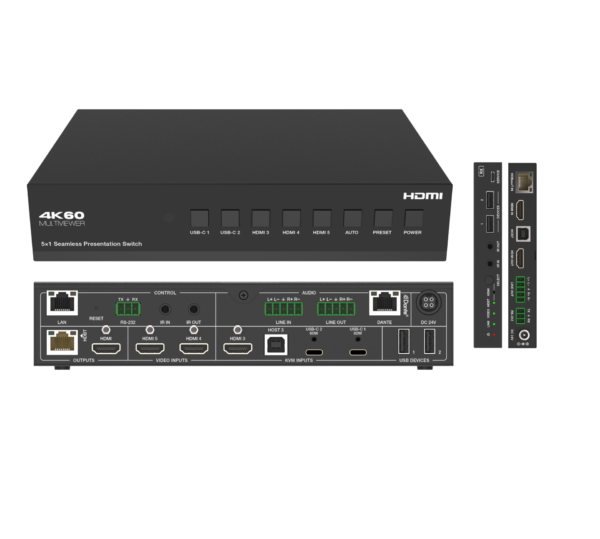

This seamless 5×1 presentation switch features 3 HDMI inputs, 2 USB-C inputs (supporting DP Alt mode, USB 2.0, 100M Ethernet, and 60W charging), 1 HDMI output, and 1 mirrored HDBT output. The HDBT output supports standard PoE power supply and can extend uncompressed signals up to 70m (4K@30Hz 4:4:4) /40m (4K@60Hz 4:4:4) using a single CAT6A (F/FTP) cable.

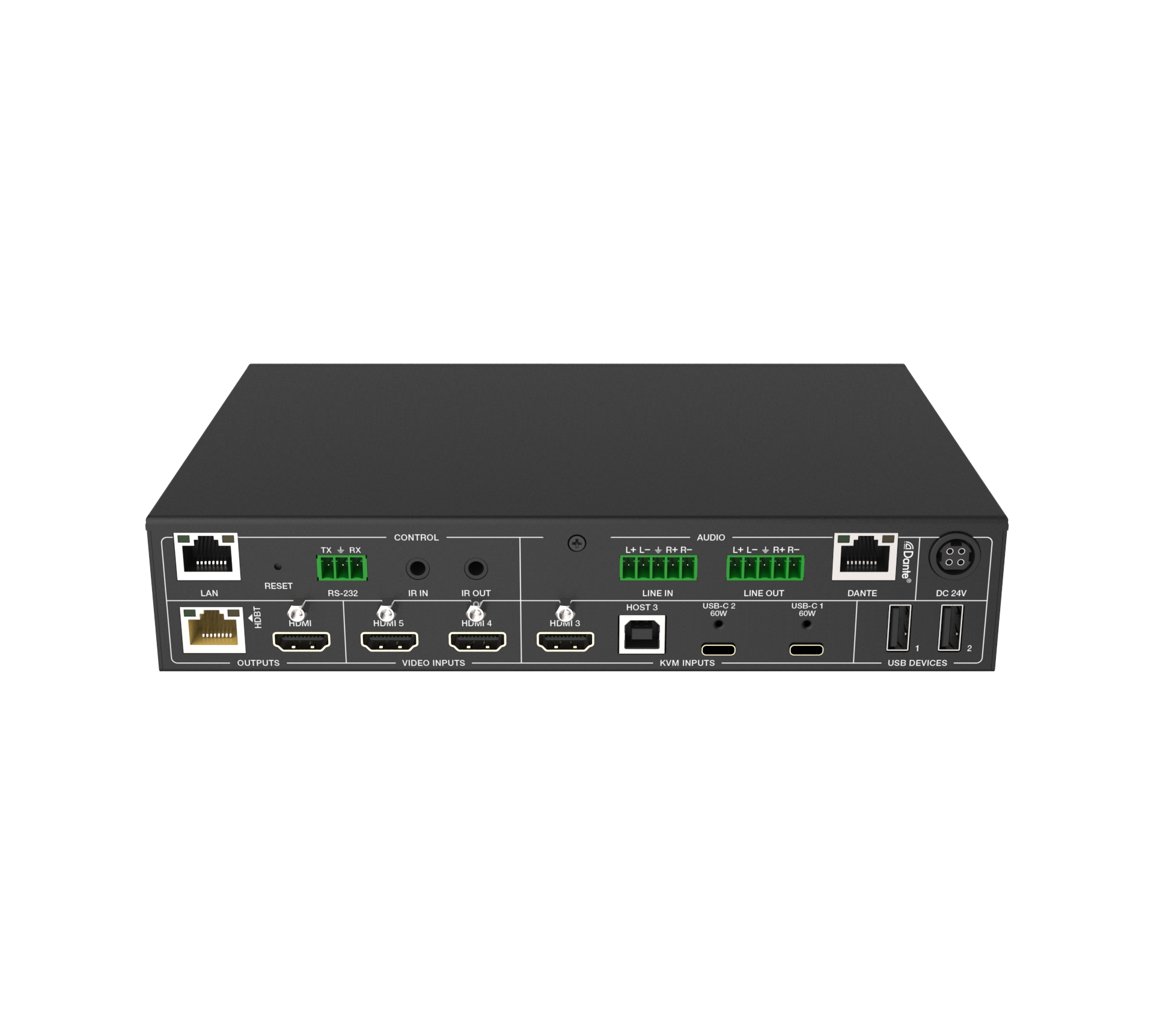

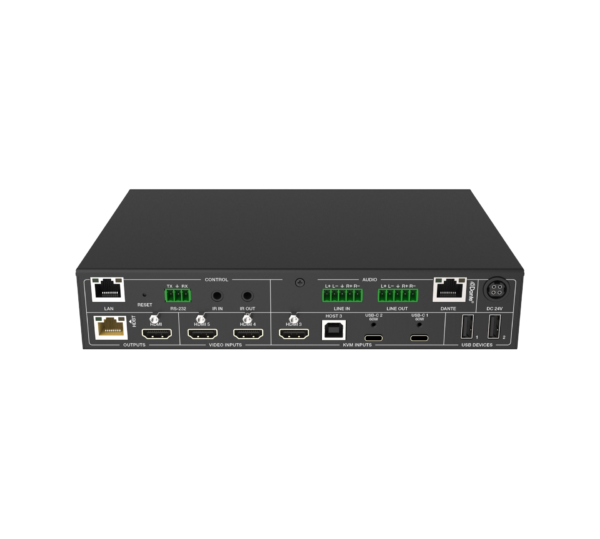

• Input: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante 2ch
• Output: 1x HDMI and 1x HDBT mirrored, 1x Analog audio, 1x Dante 2ch
• HDMI and HDBaseT (PoE) outputs (Mirrored)
• Dante 2×2 audio input and output
• USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100M Ethernet, and 60W charging
• Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
• HDMI 2.0b, HDCP 2.2, and DP 1.2 compliant
• Supports 18Gbps video bandwidth
• Uncompressed 4K60 over HDBT 3.0 up to 40m / 1080P&4K30 up to 70m via a single CAT6A
• Up to 5 categories of Multiview display modes: Single/PIP/PBP/Triple/Quad
• Supports 5×1 seamless switching (single screen) and fast switching (Multiview) function
• Signal input supports manual switching and automatic switching modes
• Supports analog/Dante audio embedding, analog/Dante audio de-embedding output
• CEC/RS-232 control external devices ON/OFF
• Flexible control via front panel buttons, IR remote, RS-232, TCP/IP, or Web GUI
• Supports standard PoE power supply (TX_PSE, RX_PD)
Package Contents:
- 1 x 5×1 Seamless Presentation Switch

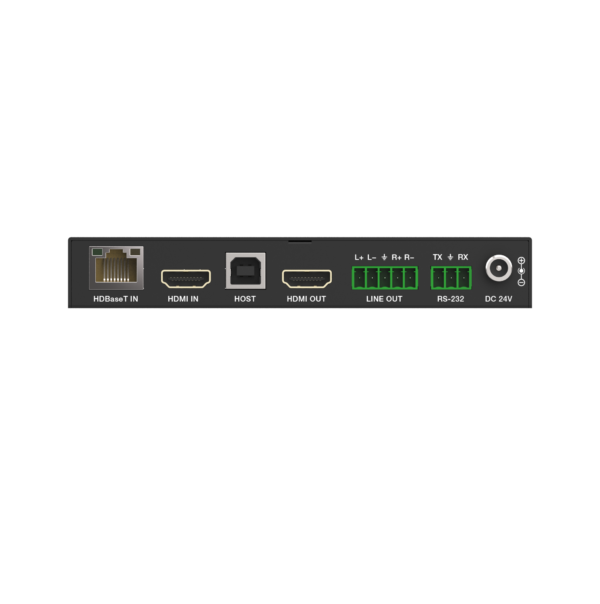

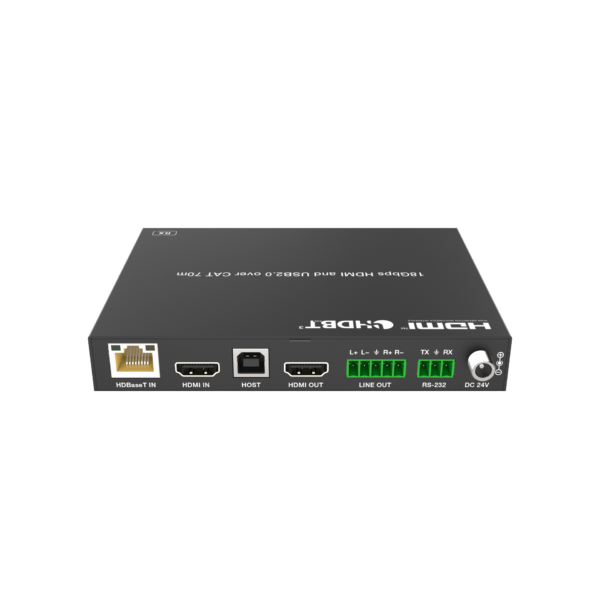

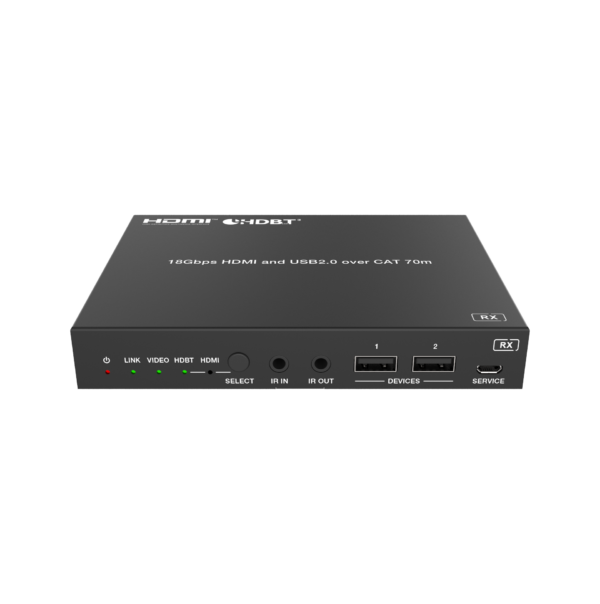

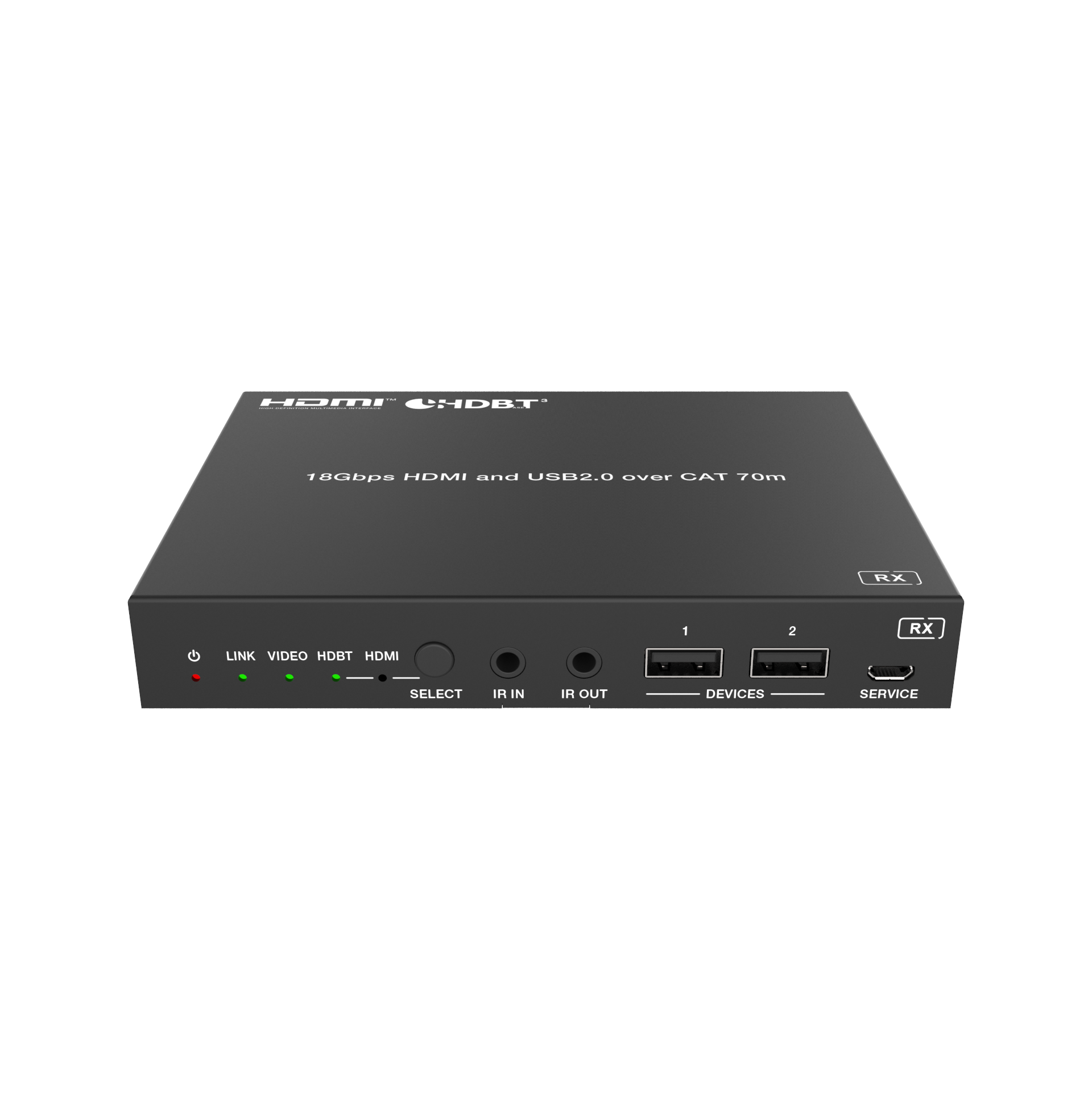

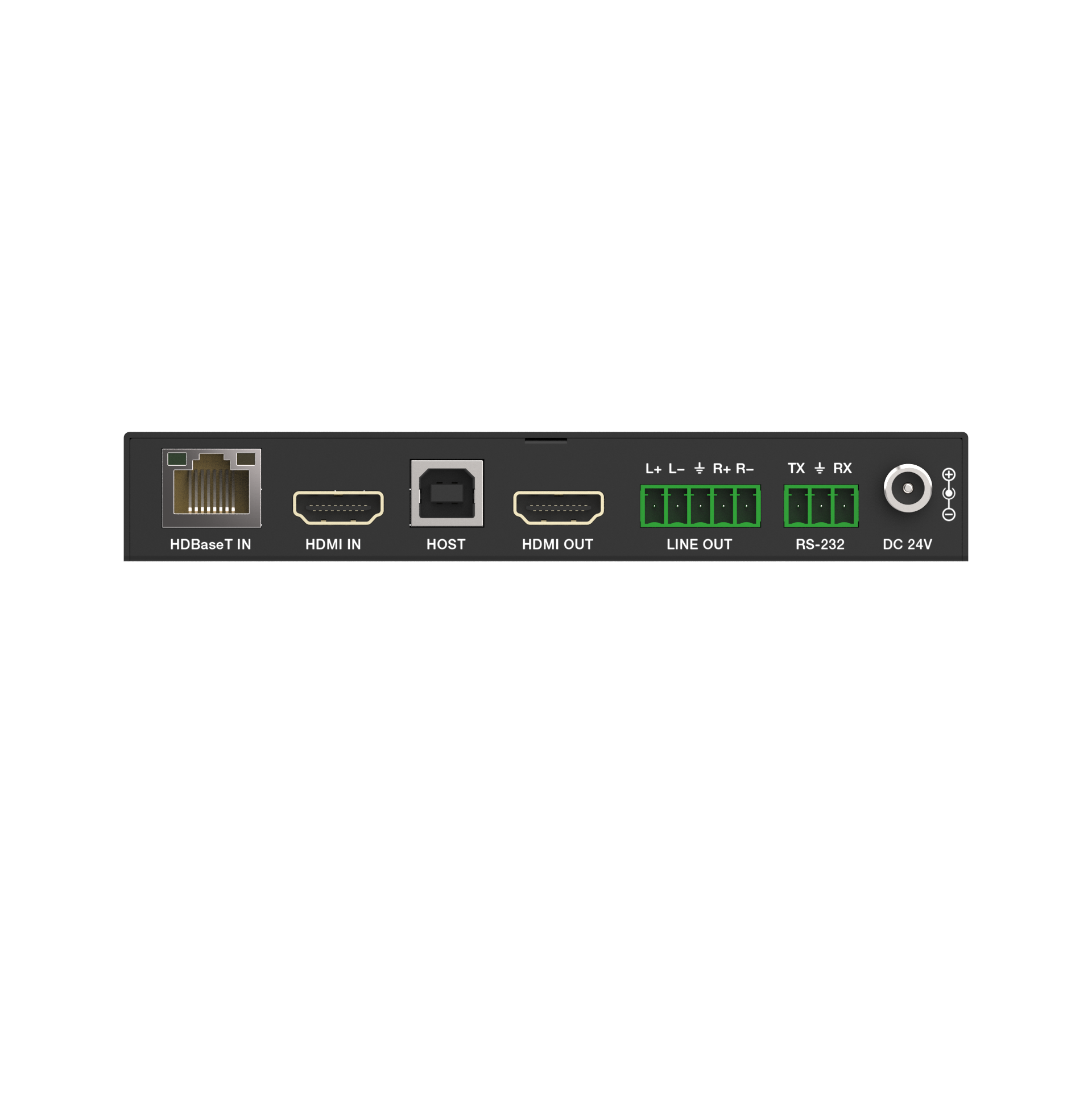

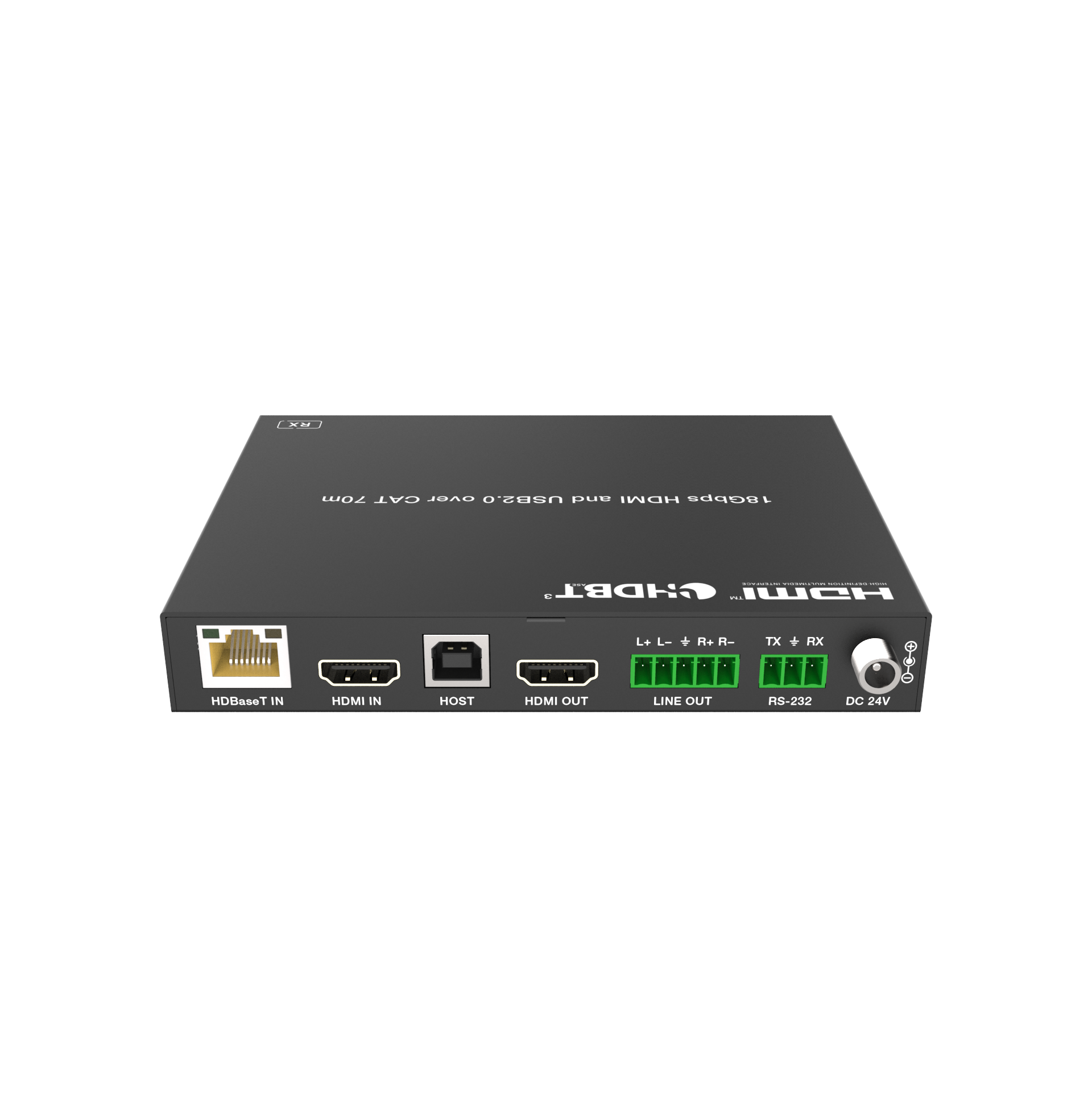

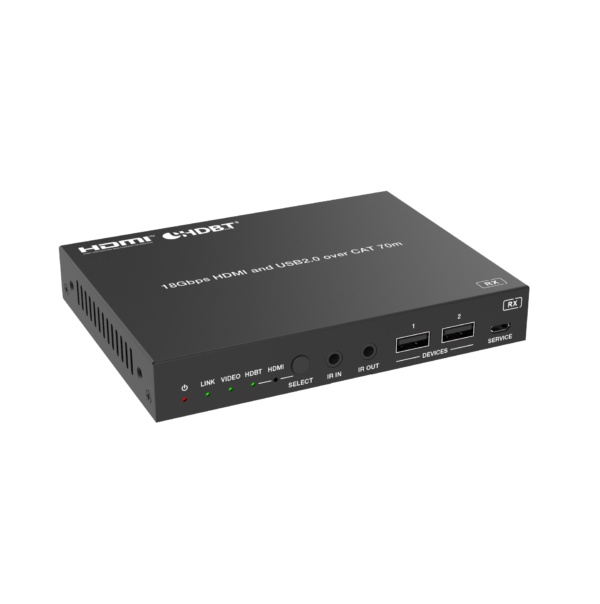

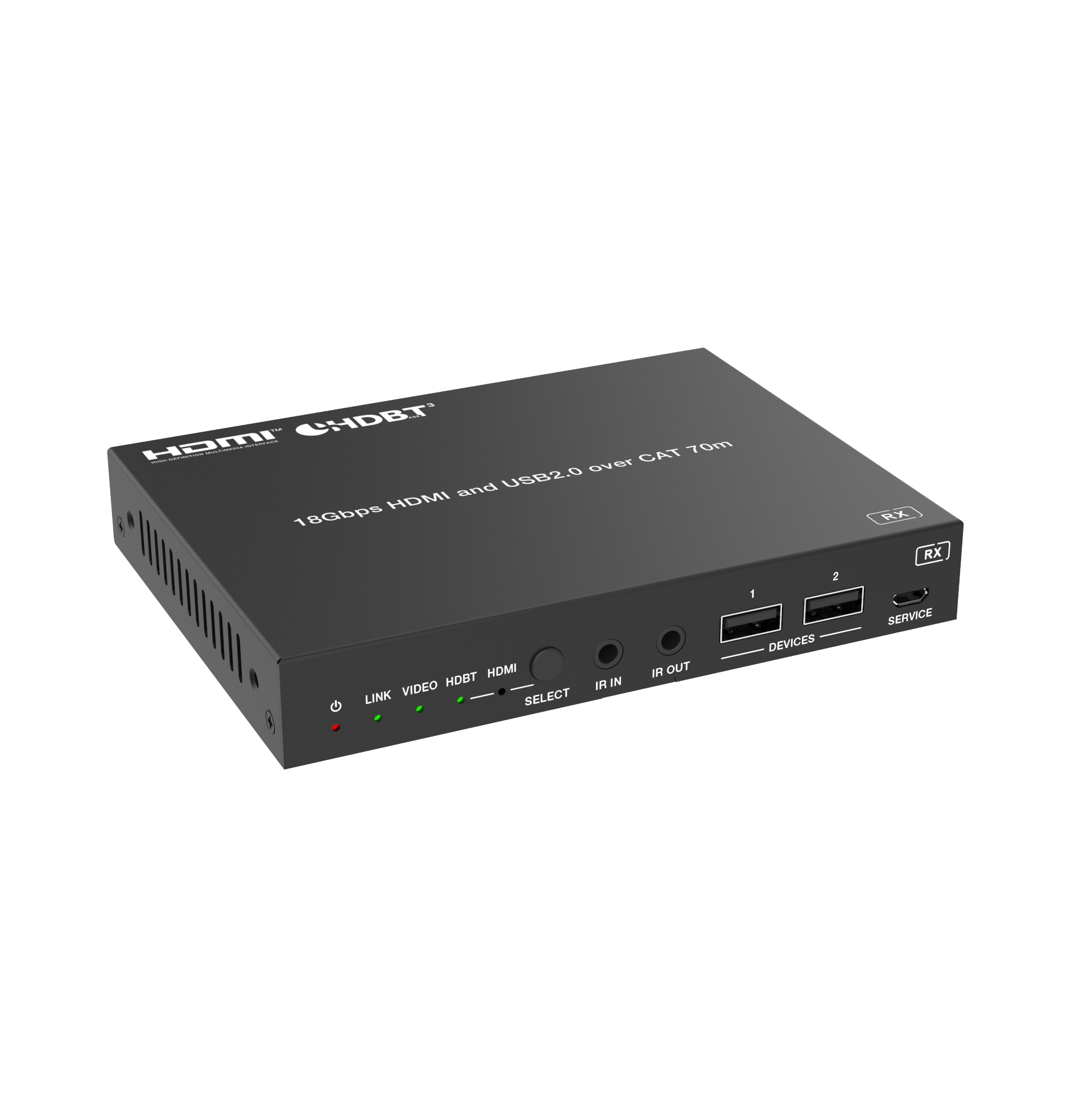

- 1 x HDBaseT Receiver
- 1 x IR Blaster Cable (1.5 meters)
- 1 x IR Wideband Receiver Cable (1.5 meters)
- 2 x 3pin-3.5mm Phoenix Connector (male)
- 3 x 5pin-3.5mm Phoenix Connector (male)
- 4 x Mounting Ear
- 8 x Machine Screw
- 1 x 24V/8A Desktop Power Supply & 1 x AC Power Cord (1.5 meters)
- 1 x IR Remote
- 1 x User Manual
