100m USB3.2 Extender over CAT6

Name: 100m USB3.2 Extender over CAT6
Brand: Network Devices
SKU: ND-100M-USB3.2-EX-GOV
Availability: InStock
Rating: 5 (1 reviews)

• Government Friendly 5 Year Warranty
• Extends USB 3.2 Gen 1 up to 100m over CAT6a cable
• Supports data transfer rates up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Hardware acceleration for isochronous and bulk transfers

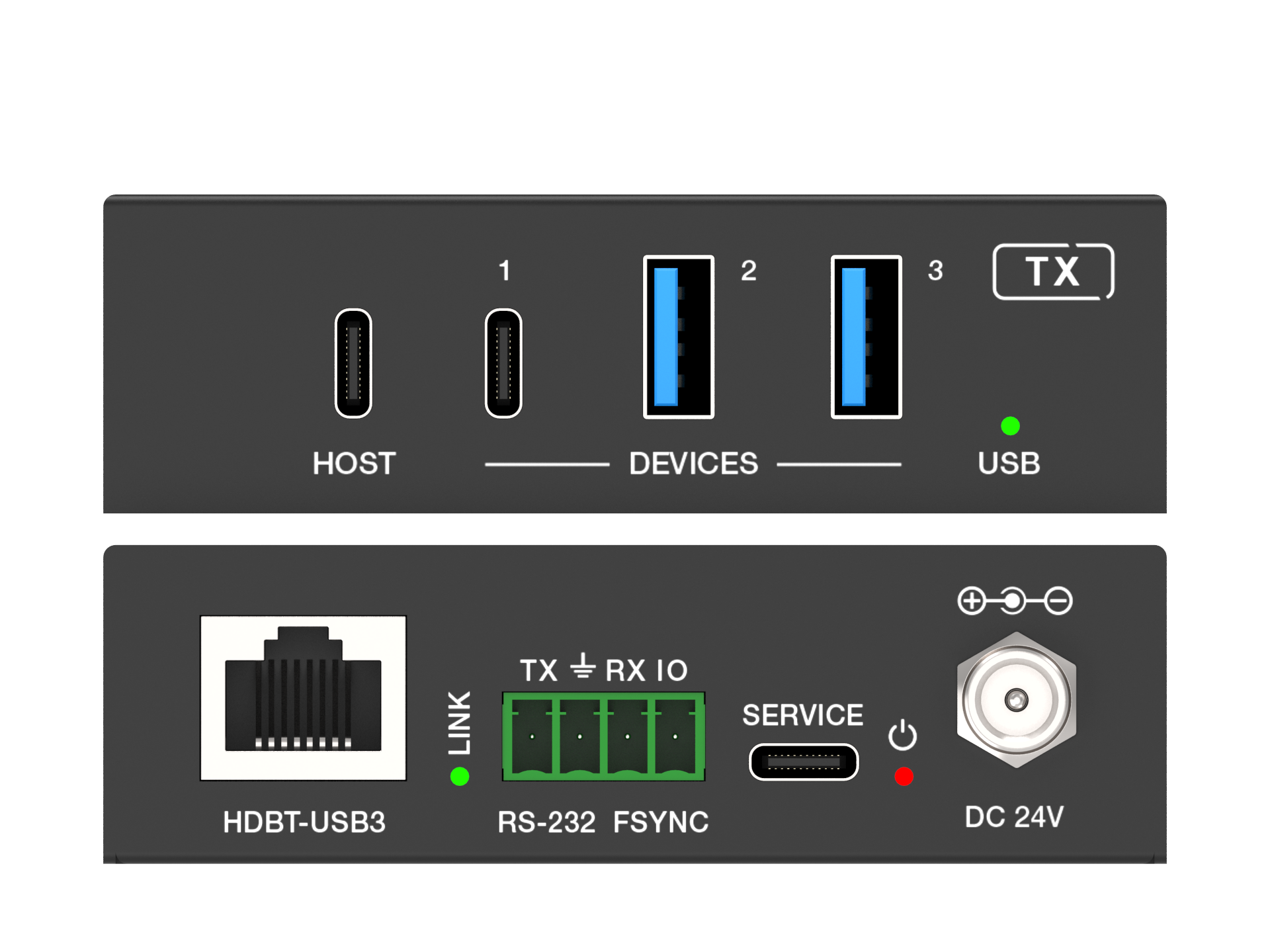

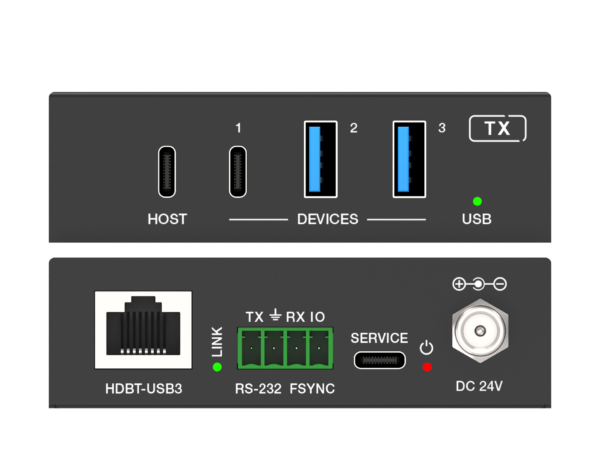

• TX features 1x USB-C host port, 1x USB-C and 2x USB-A device ports

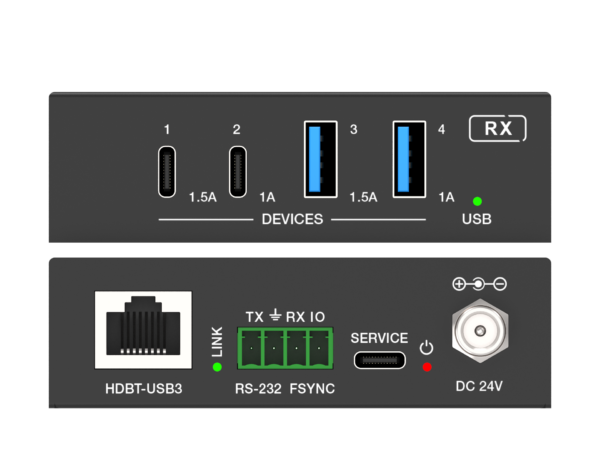

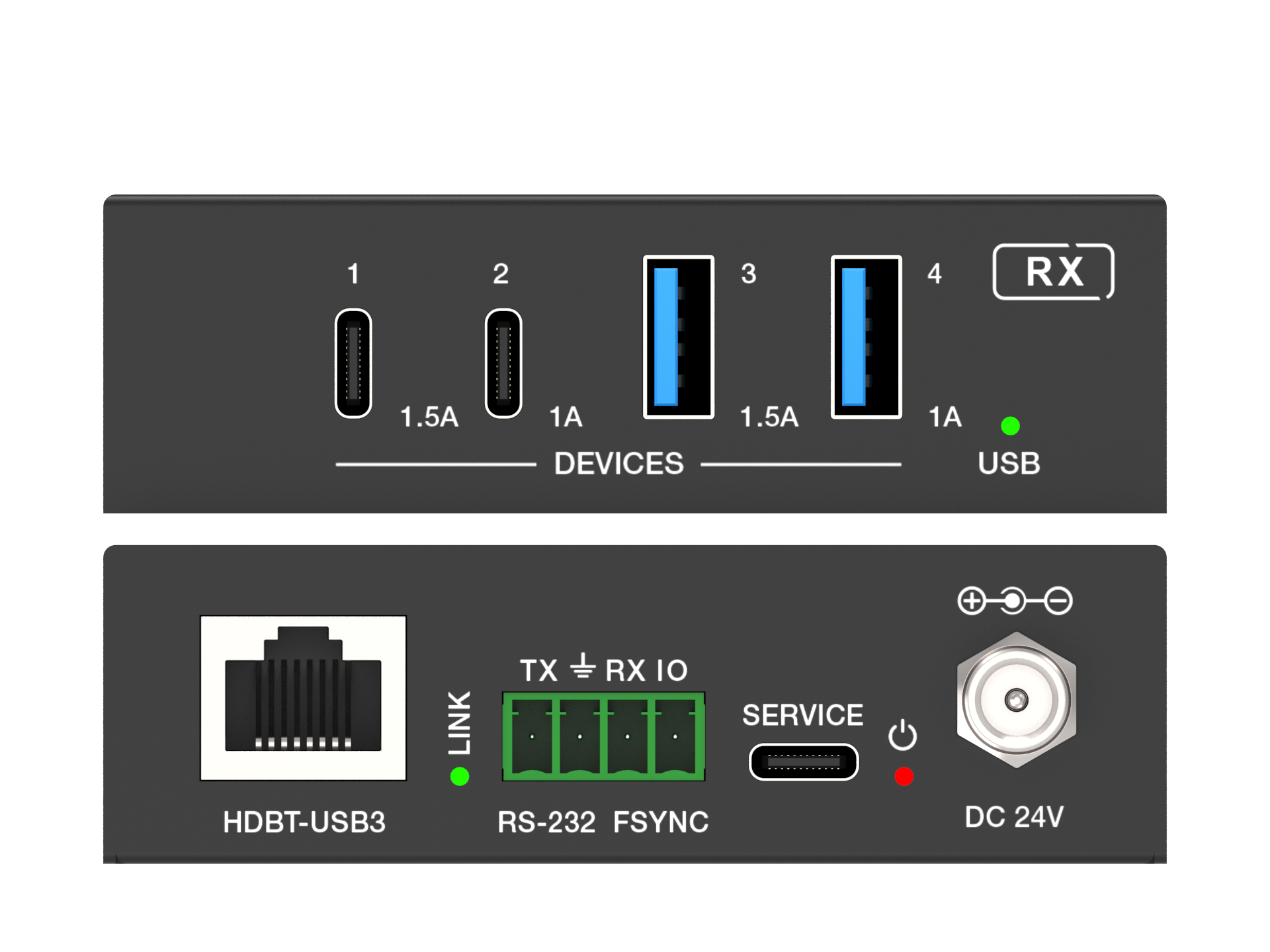

• RX features 2x USB-C (1x 5V@1A and 1x 5V@1.5A) and 2x USB-A device ports (1x 5V@1A and 1x 5V@1.5A)
• Supports RS-232 and FSYNC GPIO pass-through (industrial camera use)
• Bi-directional 24V PoC supported
• Plug and play, no drivers or settings required

SKU: ND-100M-USB3.2-EX-GOV

Description

Description

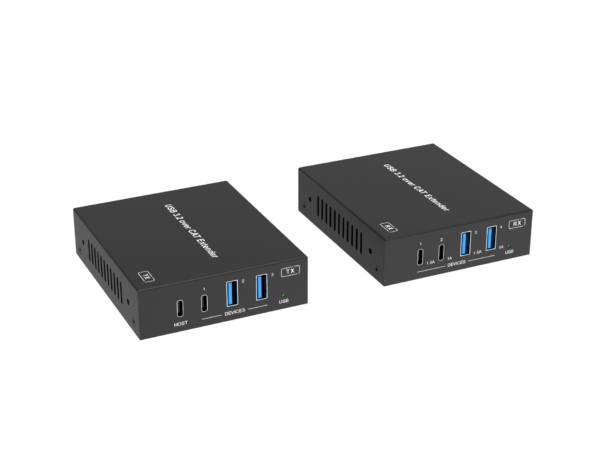

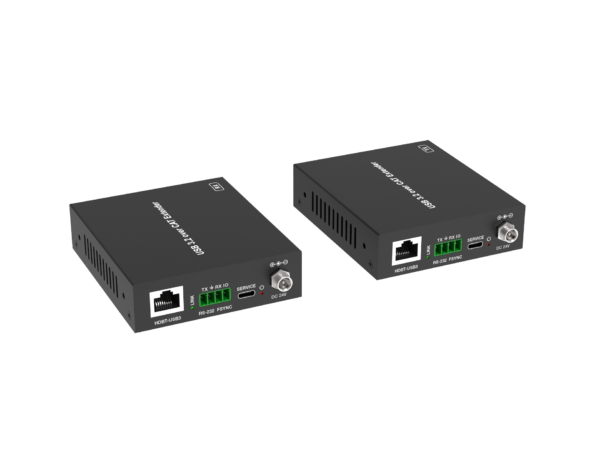

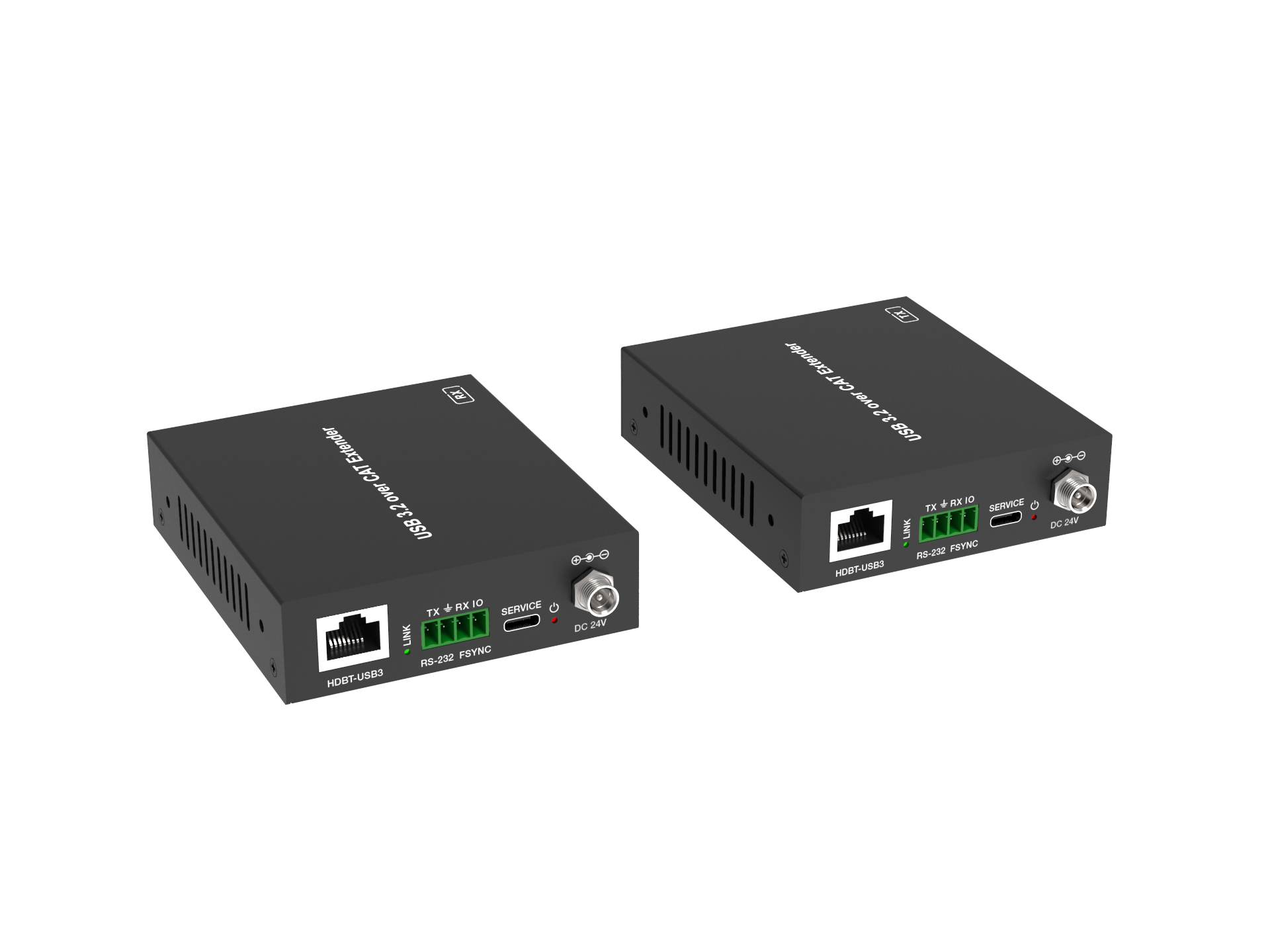

The USB 3.2 Extender can extend USB signals up to 100 meters using a single CAT6a cable. The transmitter features one USB-C host port, one USB-C and two USB-A device ports. The receiver features two USB-C and two USB-A device ports. Bi-directional 24V PoC (Power over Cable) function allows user to only supply power to either the transmitter or the receiver.

This extender is ideal for long-distance signal transmission between a PC and USB devices.

ND-100M-USB3.2-EX Manual

Package Contents
• 1× USB 3.2 Extender (Transmitter)
• 1× USB 3.2 Extender (Receiver)
• 1× 24V/2A Locking Power Supply
• 2× 4pin-3.5mm Phoenix Connector (Male)
• 4× Mounting Ear
• 8× Machine Screw (KM3*4)
• 1× User Manual
