100m USB3.0 Extender over CAT6

• Extends USB 3.0 up to 100m over CAT6a cable
• Supports data transfer rates up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Hardware acceleration for isochronous and bulk transfers
• USB-A ports 1 and 2 on the receiver support 5V/1.5A
• USB-A ports 3 and 4 support 5V/1A
• Supports RS-232 and FSYNC GPIO pass-through (industrial camera use)
• Bi-directional 24V PoC supported
• Plug and play, no drivers or settings required

SKU: ND-100M-USB3.0-EX

Description

Description

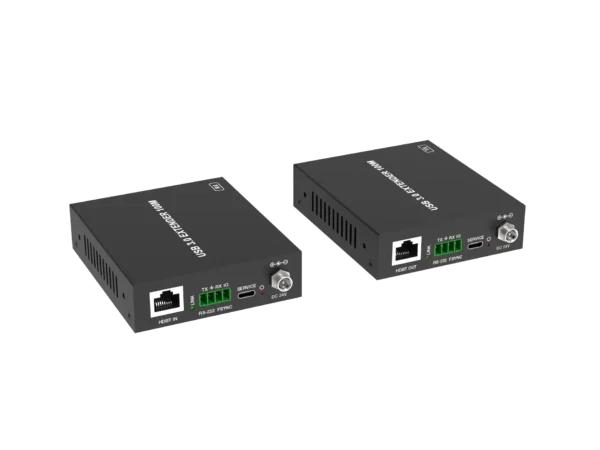

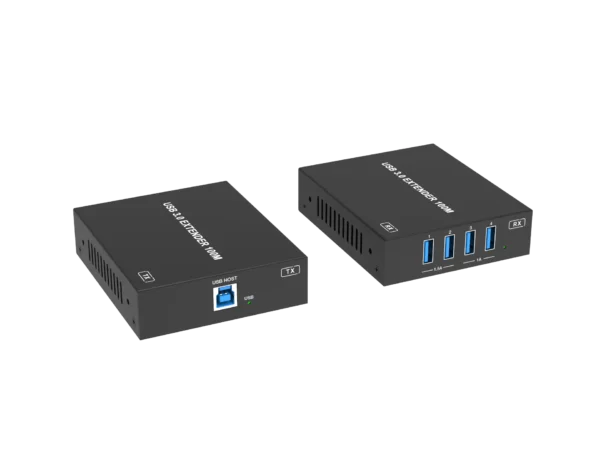

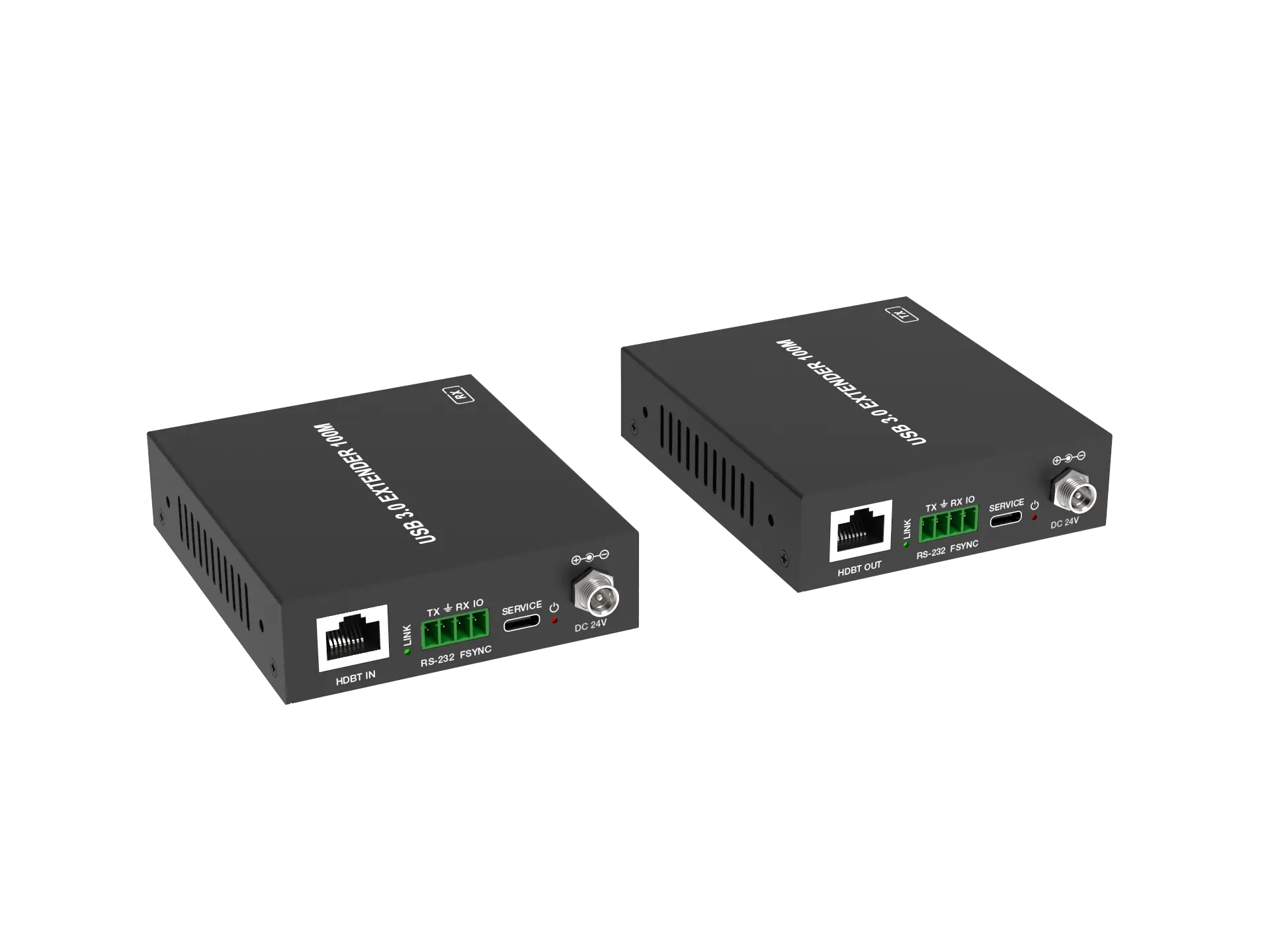

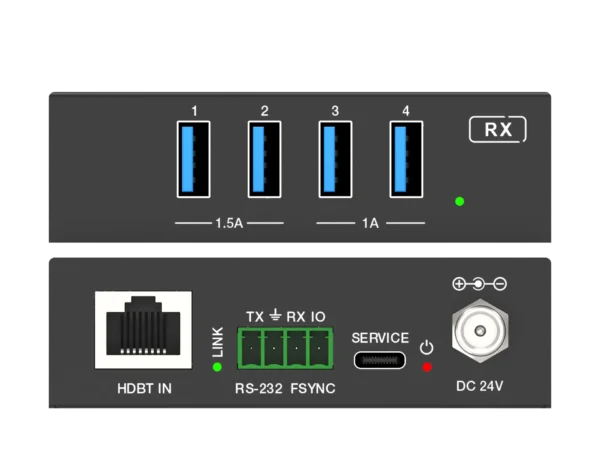

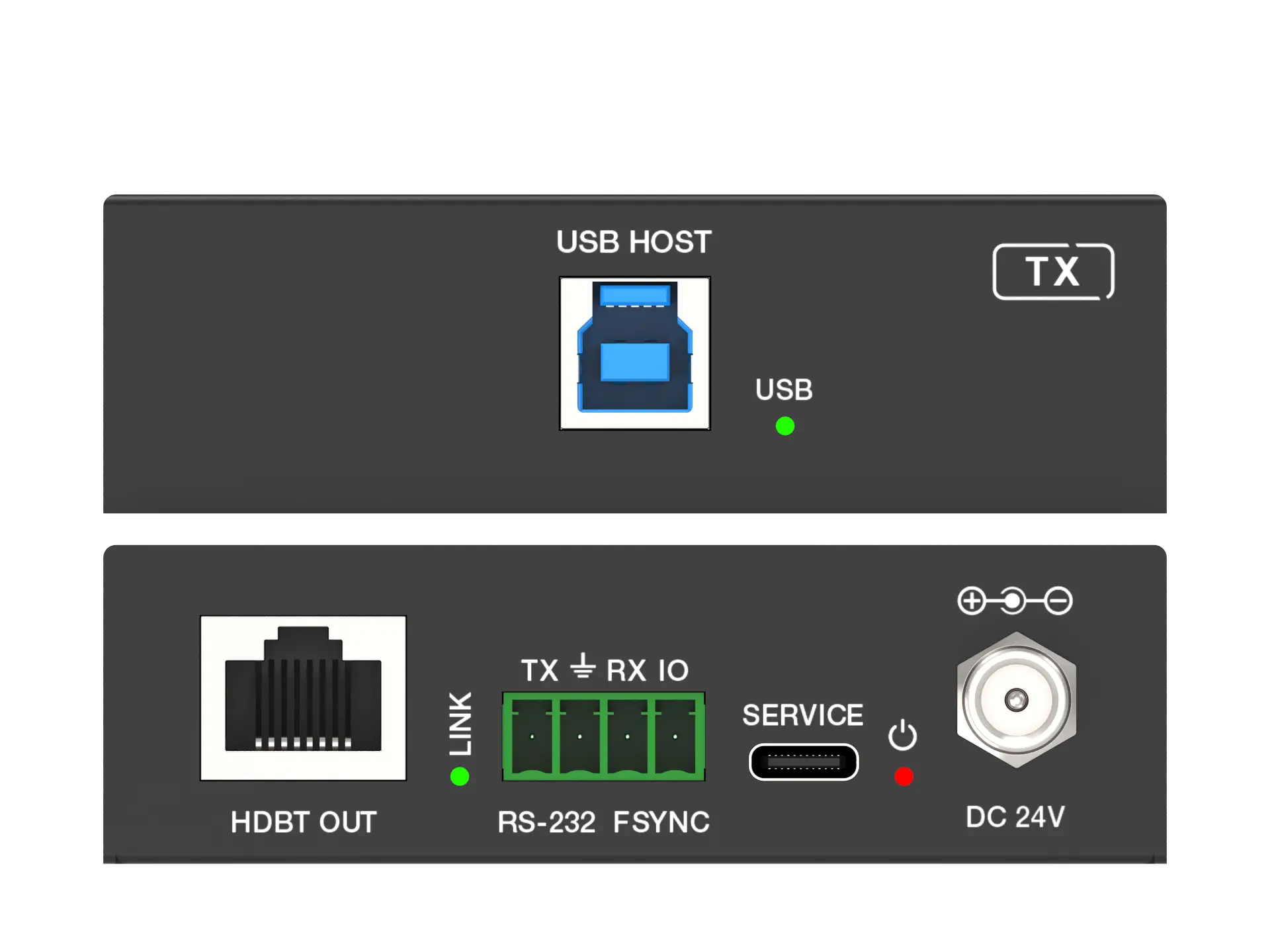

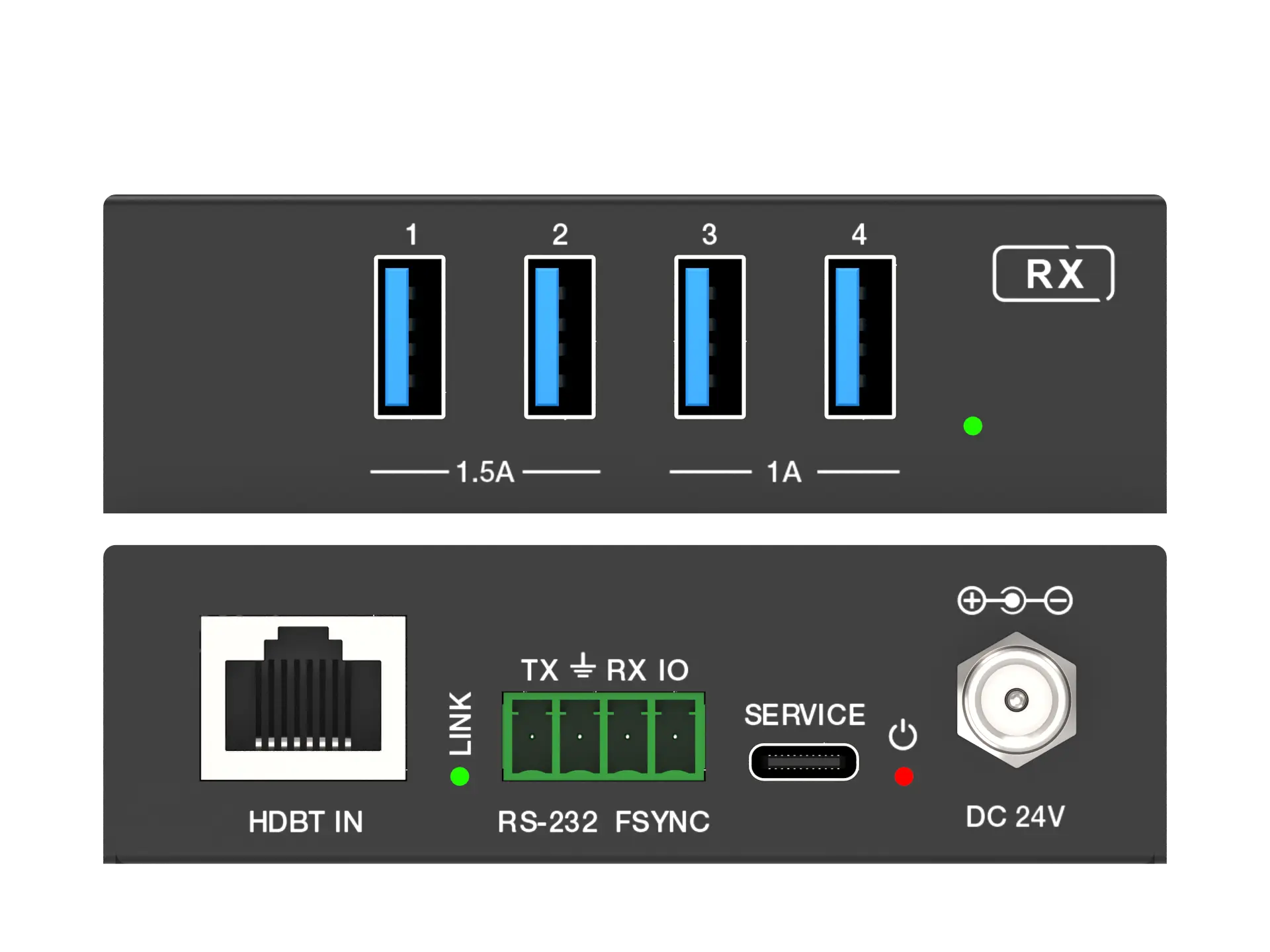

The USB 3.0 Extender can extend USB signals up to 100 meters using a single CAT6a cable. The transmitter includes a USB 3.0 Type B input, FSYNC GPIO input, and RS-232 pass-through. The receiver provides four USB 3.0 Type A outputs, FSYNC GPIO output, and RS-232 pass-through. It also supports bi-directional 24V PoC.

This extender is ideal for long-distance signal transmission between a PC and USB devices.

ND-100M-USB3.0-EX Manual

Package Contents
• 1× USB 3.0 Extender (Transmitter)
• 1× USB 3.0 Extender (Receiver)
• 1× 24V/2A Locking Power Supply
• 2× 4pin-3.5mm Phoenix Connector (Male)
• 4× Mounting Ear
• 8× Machine Screw (KM3*4)
• 1× User Manual
