• 5 x 2 presentation switcher with PIP/PAP/Tri/Quad-view
• True seamless switching, no freezing or black
• HDMI 2.0b, HDCP 2. 2, DP1.4 up to 4K60@4:4:4
• 3 × HDMI, 1 × DisplayPort and 1 × USB-C inputs
• 1 × HDMI, 1 × Mirrored HDBaseT 70M/POC outputs
• Full screen/PIP/PAP/Tri/Quad-view 5 configurable display modes
• Up to 14 output resolutions selectable
• 3.5mm analog audio de-embedding
• EDID management
• Buttons and RS-232 control -

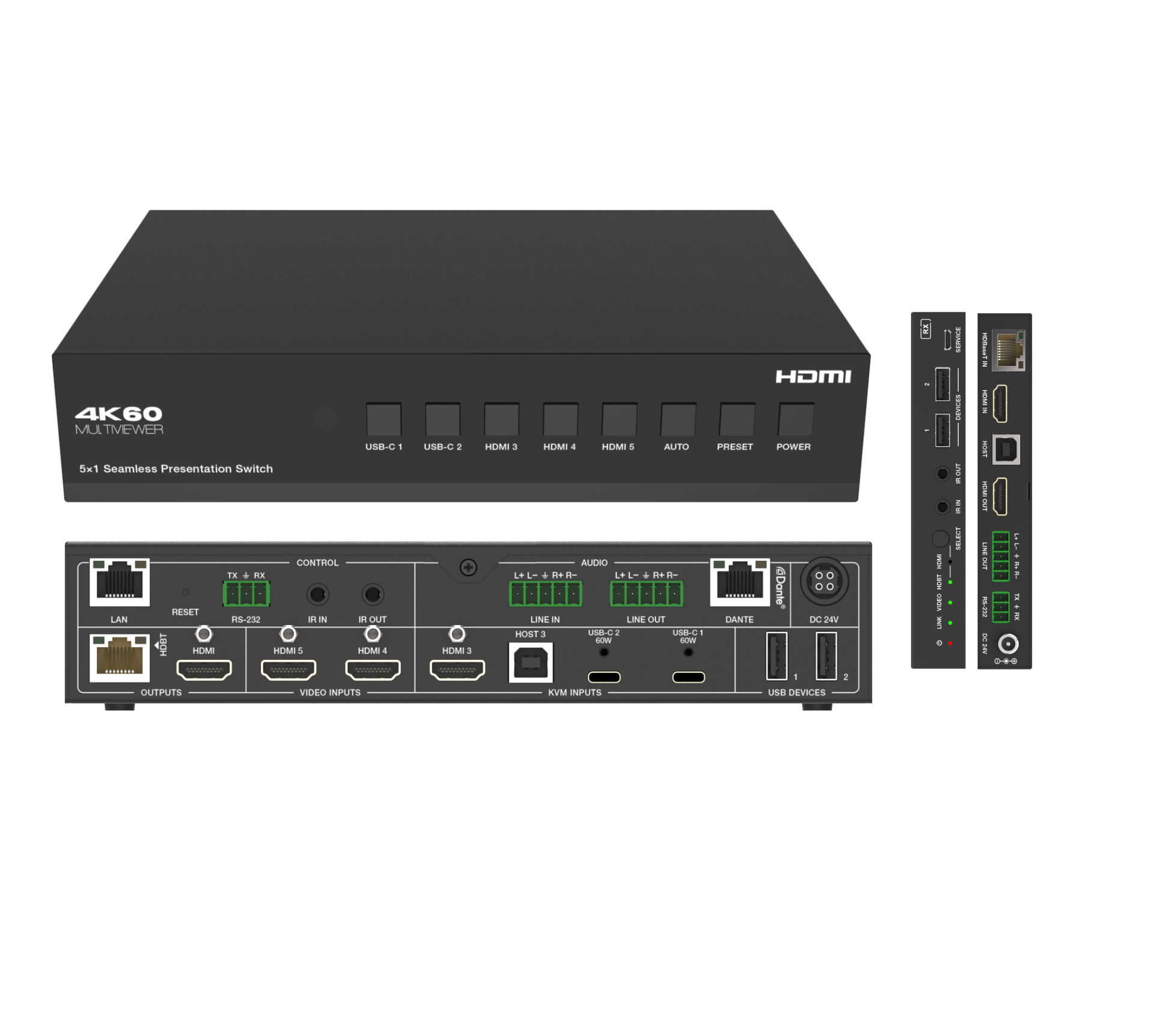

• Inputs: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante 2ch
• Outputs: 1x HDMI and 1x HDBT mirrored, 1x Analog audio, 1x Dante 2ch
• HDMI and HDBaseT (PoE) outputs (Mirrored)
• Dante 2×2 audio input and output
• USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100M Ethernet, and 60W charging
• Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
• Supports 18Gbps video bandwidth -
• 4 x 4 HDMI 2.0 Matrix support up to 4K60 444 resolution
• HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• De-embedded audio to analog L/R and Coaxial ports output
• ARC audio return to the coaxial ports output only
• Built-in Web GUI for TCP/IP control
• Advanced EDID management supported
• Four methods of control: Front panel, RS-232, IR remote and TCP/IP
-
