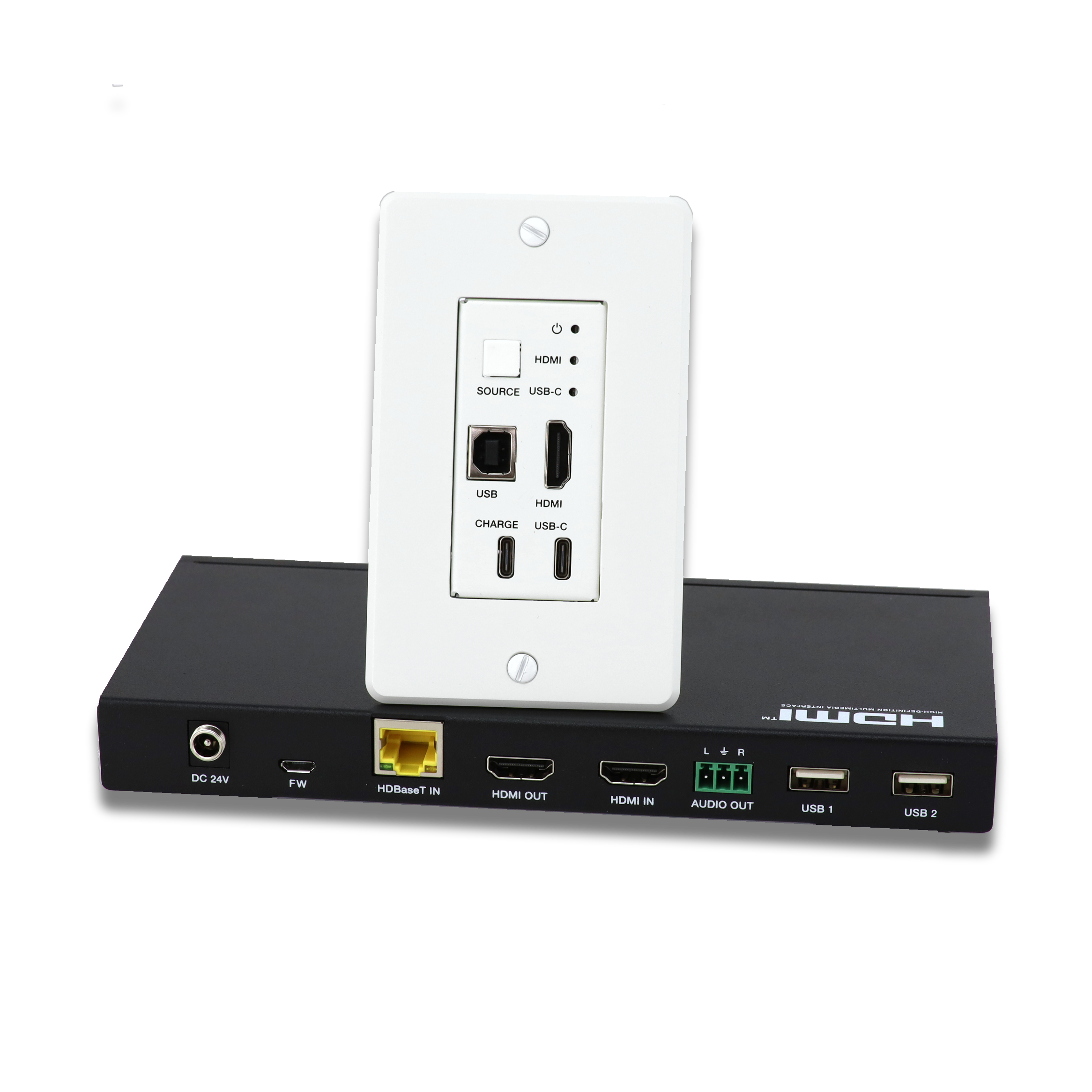

• Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
• HDMI input supports 18Gbps video bandwidth;
• USB-C input supports 5.4Gbps video bandwidth
• Video resolution up to 4K2K@50/60Hz 4:4:4
• CAT6 output can extend video transmission distance up to 50m@4K@24 or 35m@4K@60 444 via a single CAT5e/6 cable
• Supports 3D, HDR10 and Dolby Vision
• Supports HDMI and USB-C input
• With USB-C charging port
• US one-gang enclosure for Decora-style wall plate openings
• Input signal selection supports automatic mode and manual mode
• Supports POC function (only from Receiver to Transmitter) -
Features
• HDMI and USB-C inputs.
• Automatic and manual input signal selection.
• USB-C charging input with loop-through port.
• Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a.
• Supports up to 4K@60Hz 4:4:4 resolution with 18Gbps bandwidth.
• Extends video transmission up to 70m for 1080p or 40m for 4K via a single CAT6/6a/7 cable.
• Includes USB 2.0 extension with the receiver.
• Supports PoE from receiver to transmitter. -

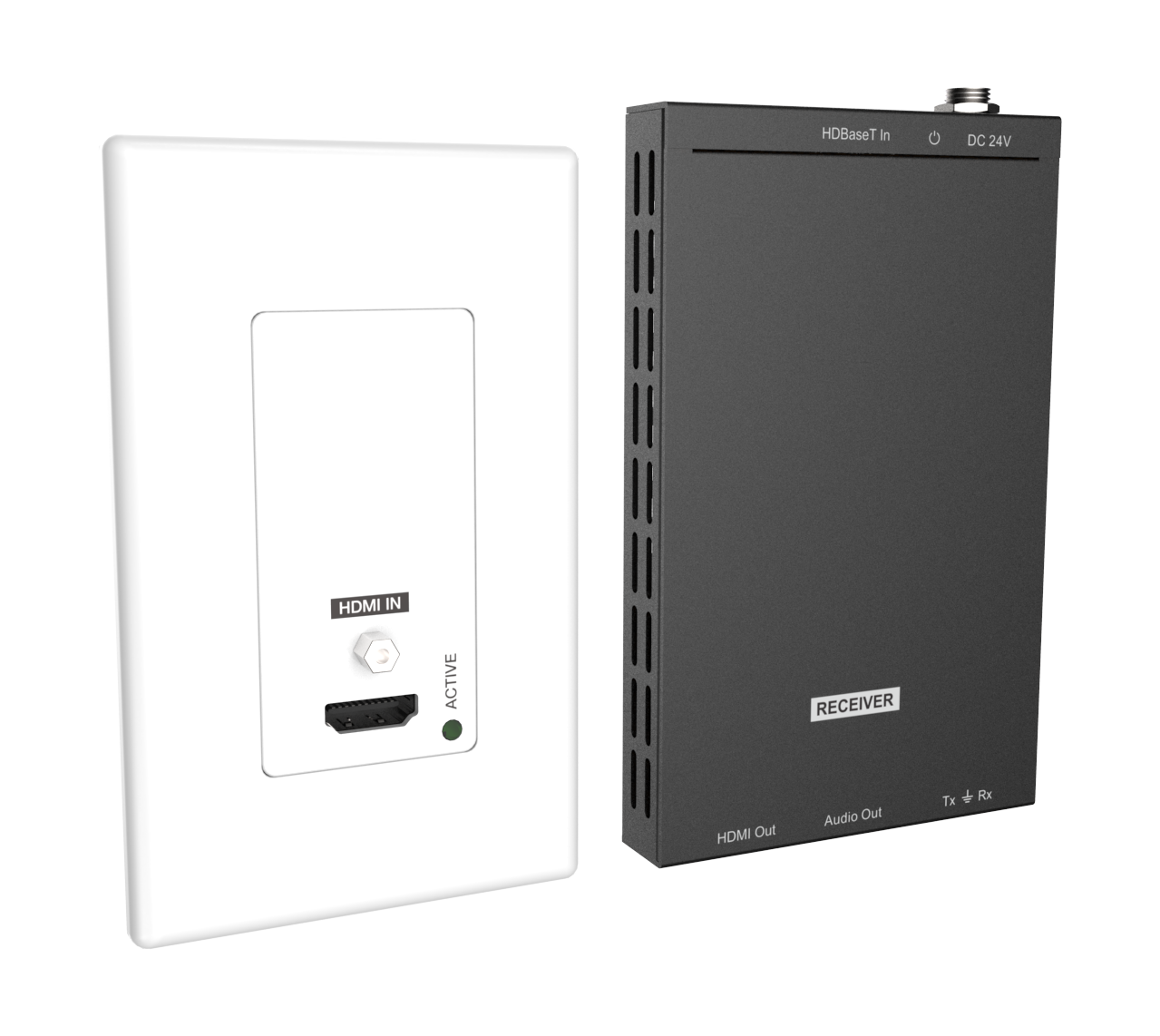

• HDMI 2.0b 18Gbps, HDCP 2.2 compliant
• HDMI signals over a single CAT 6/6a/7 cable up to 70m distance
• up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz
• One HDMI input, 1 Gang US Decora Wall Plate
• Two-way IR and RS-232
• PWR/LINK/HDCP indicators
• POC (Power Over Cable) function -

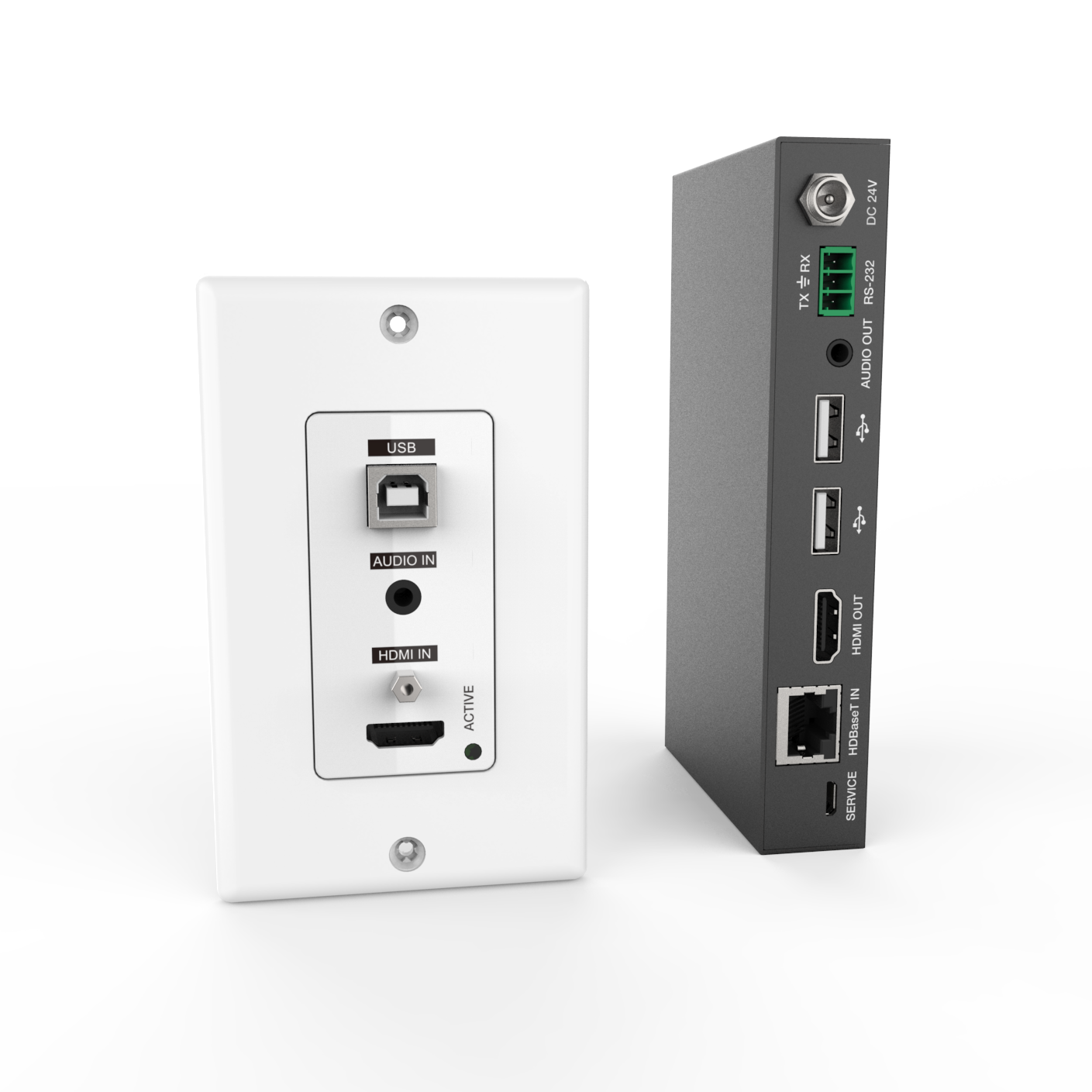

• Extend HDMI up to 4K, USB2.0, RS232 Analog Audio signals up to 70 meters.
• 1 Way PoC from RX to wall plate TX
• HDMI, audio, USB 2.0 high-speed extender set
• Supports video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
• Pass-through 3.5mm analog audio passes audio independent of HDMI port
• Extend USB 2.0 high speed up to 190Mbps
• Receiver features HDMI output, 3.5mm audio output, and 2 USB-A ports
• Supports HDCP 2.2 and HDCP 1.4 compliant
• Supports all HDMI audio formats -

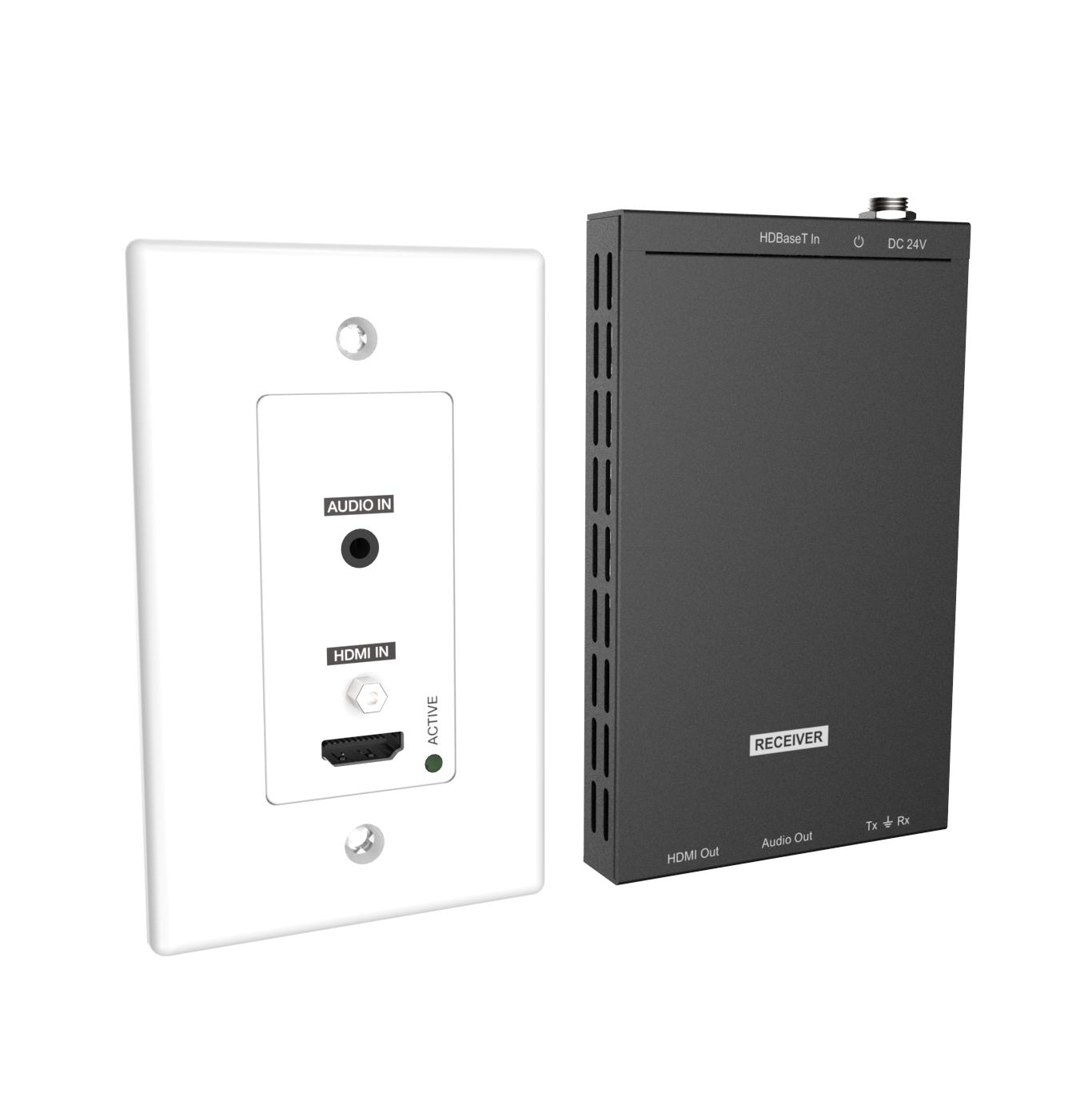

• HDMI 1.4b, HDCP 2.2 compliant
• up to 4K2K@50/60Hz(4:2:0), 4K2K@30Hz 4:4:4, 1080p@120Hz
• up to 7.1 channels HD audio
• HDBaseT™ over a single CAT6/6a/7 cable up to 40m distance
for 4K2K@60Hz(4:2:0) or up to 70m distance for 1080p60Hz
• Independent analog audio from transmitter to receiver
• Two-way IR, RS-232
• Single-Gang US Decora Wall Plate
• 24V POC is supported
-
• Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
• HDMI input supports 18Gbps video bandwidth;
• USB-C input supports 5.4Gbps video bandwidth
• Video resolution up to 4K2K@50/60Hz 4:4:4
• CAT6 output can extend video transmission distance up to 50m@4K@24 or 35m@4K@60 444 via a single CAT5e/6 cable
• Supports 3D, HDR10 and Dolby Vision
• Supports HDMI and USB-C input
• With USB-C charging port
• US one-gang enclosure for Decora-style wall plate openings
• Input signal selection supports automatic mode and manual mode
• Supports POC function (only from Receiver to Transmitter) -
Features
• HDMI and USB-C inputs.
• Automatic and manual input signal selection.
• USB-C charging input with loop-through port.
• Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a.
• Supports up to 4K@60Hz 4:4:4 resolution with 18Gbps bandwidth.
• Extends video transmission up to 70m for 1080p or 40m for 4K via a single CAT6/6a/7 cable.
• Includes USB 2.0 extension with the receiver.
• Supports PoE from receiver to transmitter. -
• HDMI 2.0b 18Gbps, HDCP 2.2 compliant
• HDMI signals over a single CAT 6/6a/7 cable up to 70m distance
• up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz
• One HDMI input, 1 Gang US Decora Wall Plate
• Two-way IR and RS-232
• PWR/LINK/HDCP indicators
• POC (Power Over Cable) function -
• Extend HDMI up to 4K, USB2.0, RS232 Analog Audio signals up to 70 meters.
• 1 Way PoC from RX to wall plate TX
• HDMI, audio, USB 2.0 high-speed extender set
• Supports video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
• Pass-through 3.5mm analog audio passes audio independent of HDMI port
• Extend USB 2.0 high speed up to 190Mbps
• Receiver features HDMI output, 3.5mm audio output, and 2 USB-A ports
• Supports HDCP 2.2 and HDCP 1.4 compliant
• Supports all HDMI audio formats -
• HDMI 1.4b, HDCP 2.2 compliant
• up to 4K2K@50/60Hz(4:2:0), 4K2K@30Hz 4:4:4, 1080p@120Hz
• up to 7.1 channels HD audio
• HDBaseT™ over a single CAT6/6a/7 cable up to 40m distance
for 4K2K@60Hz(4:2:0) or up to 70m distance for 1080p60Hz
• Independent analog audio from transmitter to receiver
• Two-way IR, RS-232
• Single-Gang US Decora Wall Plate
• 24V POC is supported
